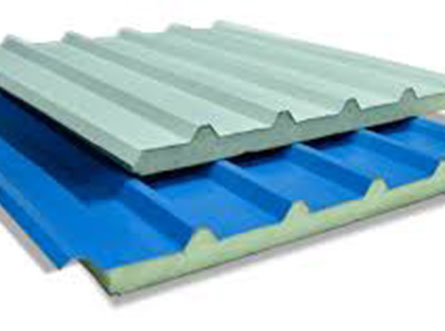

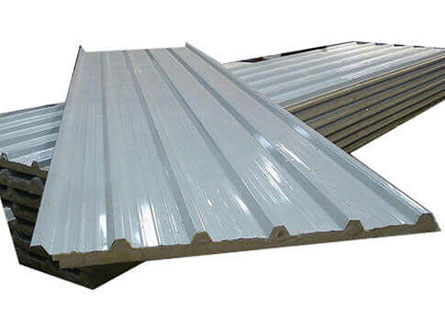

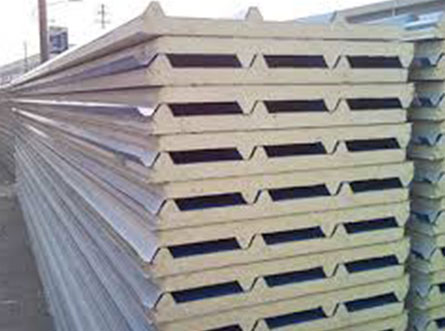

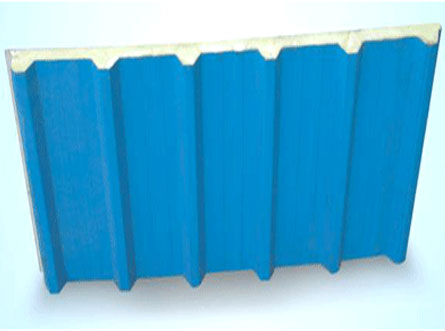

Koreapuff Roofing Panels are a pre-fabricated, leak-proof roofing panel for commercial, educational, and domestic buildings. The thick insulation considerably reduces the summer heat and the furore of the monsoon.
Koreapuff Roofing Panels are made of polyurethane foam (PUF) sandwiched between layers of waterproof and non-corrosive material. These pre-fabricated roofing panels are designed to withstand the quirks of the nature and the vagaries of time.
This Panels are effectively restricts the transmission of heat by 5-6 degrees, and also absorbs and reduces the noise of rain as wall. These roofing panels are aesthetically designed, sound-proof and weather-resistant. Being corrosion-free, these panels require low maintenance and durable in nature, making them a cost-effective roofing solution.
| Dimensional stability | > 1% for -48h @ -30° C |
| Working Temparature | -90° C or +90° C |
| Adhesion Strength | > 100 Kpa |
| Compressive strength | > 120 Kpa |
| Thermal conductivity | u=0.020 W/M 0 k |
| Metal laminates | Pre-painted galvanised steel (PPGS) |
| Insulation | Rigid PUF |
| Normal density | 35-40 kgs/m3 |

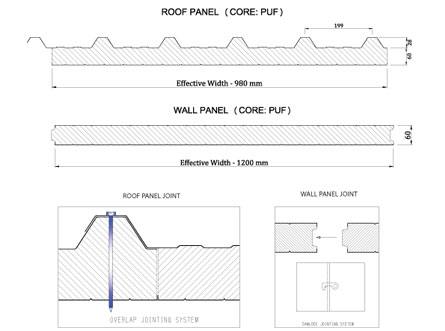

| Joinery | Overlap joinery with stich screw and EPDM washers Butyl sealants for leak-proof construction |
| Normal panel width | 1000 mm |
| Panel Length | Single panel up to 6000 mm |
